December 1, 2016

New U.S. border-crossing pipelines bring shale gas to more regions in Mexico

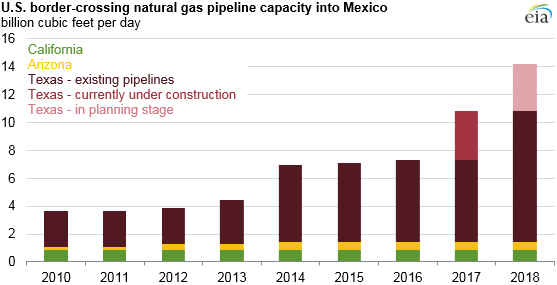

graph of U.S. border crossing natural gas pipeline capacity into Mexico, as explained in the article text
Source: U.S. Energy Information Administration, Natural Gas Pipelines

U.S. pipeline capacity for natural gas exports to Mexico has rapidly expanded in the past few years and currently stands at 7.3 billion cubic feet per day (Bcf/d). This existing cross-border capacity primarily supplies the Northeast and Central regions of Mexico. New capacity projected to be completed in the next several years will help to supply Mexico’s Central and Northwestern regions.

The expansion of the U.S. cross-border pipeline network into Mexico has been driven primarily by strong growth in Mexico’s natural gas demand in the power sector, declining domestic production, and the lower prices of U.S. pipeline gas compared with more expensive liquefied natural gas (LNG) imports.

In the next three years, U.S. pipeline capacity into Mexico will nearly double. In 2017, four U.S. pipeline projects under construction—Roadrunner (Phase II), Comanche Trail, Presidio Crossing (also called Trans-Pecos), and Nueva Era—totaling 3.5 Bcf/d, will supply natural gas to new natural gas-fired power plants in the states of Chihuahua, Nuevo Leon, Sonora, and Sinaloa. By the end of 2018, two additional pipelines—KM Mier-Monterrey and Neuces-Brownsville—totaling 3.3 Bcf/d, are projected to begin exporting natural gas to Mexico’s Northeast and Central regions, mainly from the Eagle Ford play in southern Texas.

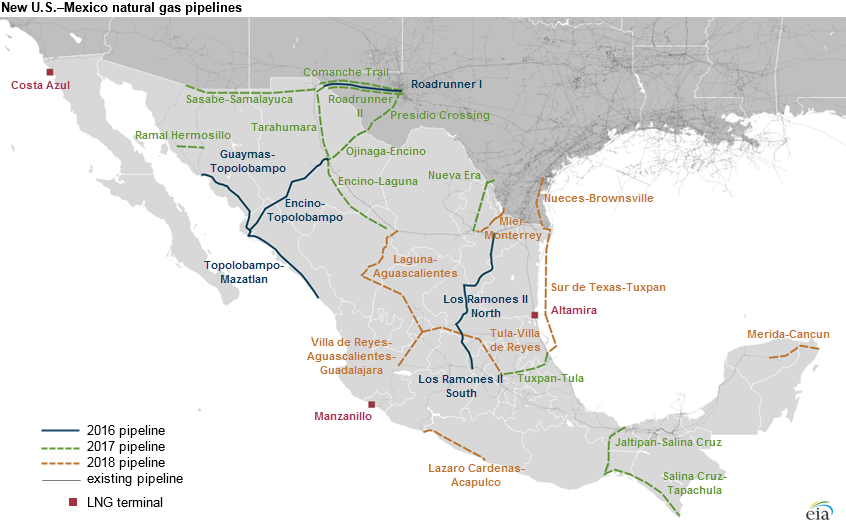

map of Mexican pipelines, as explained in the article text
Source: U.S. Energy Information Administration, based on Secretaria de Energia (SENER)
Note: Click to enlarge for more detail.

The expansion of U.S. pipeline export capacity to Mexico has been matched by the expansion of Mexico’s domestic pipeline network, which includes 12 additional pipelines with a total capacity of 9.7 Bcf/d currently in development within Mexico. These pipelines are part of Mexico’s energy ministry’s (SENER) five-year plan for expansions of the country’s natural gas pipeline infrastructure.

U.S. pipeline exports to Mexico have increased significantly over the past several years and are beginning to gradually displace Mexico’s LNG imports. The completion of the Los Ramones Phase I pipeline (2.1 Bcf/d capacity), which went into service in 2014, has already mostly displaced LNG imports at the Altamira terminal with natural gas from the Eagle Ford play. LNG imports at Altamira averaged 0.1 Bcf/d through October of this year, more than 50% lower than in 2015.

The completion of Phase II South (1.4 Bcf/d) of Los Ramones pipeline is expected to displace LNG imports at the Manzanillo terminal in the Central region of Mexico, including Mexico City. LNG imports to Manzanillo averaged 0.5 Bcf/d through October. The Central region has been experiencing natural gas shortages and has been required to purchase additional LNG to make up the difference. Once Los Ramones Phase II South begins operation and ramps up to full capacity, more U.S. shale gas is expected to displace LNG imports at the Manzanillo terminal.

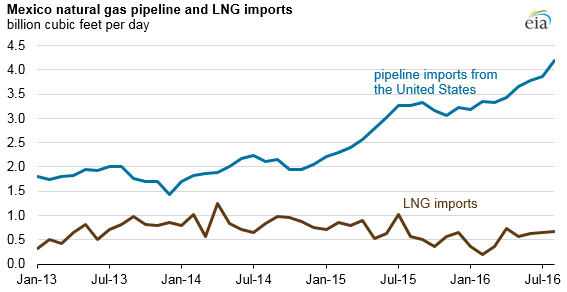

graph of mexico natural gas pipeline and LNG imports, as explained in the article text
Source: U.S. Energy Information Administration, Mexico Secretaria de Economia export-import trade statistics

Principal contributors: Victoria Zaretskaya, Faouzi Aloulou
