Natural Gas

‹ See the most recent Natural Gas Weekly Update

Natural Gas Weekly Update

for week ending September 27, 2023   |  Release date:  September 28, 2023   |  Next release:  October 5, 2023   |   Previous weeks

JUMP TO: Prices | Supply and Demand | Liquefied Natural Gas (LNG) | Rig Count | Storage | Other Market Drivers

In the News:

Natural gas combined-cycle power plants increased utilization with improved technology

The average utilization rate, called capacity factor, for the entire U.S. fleet of combined-cycle natural gas turbine (CCGT) electric power plants has been generally rising, increasing from 40% in 2008 to 57% in 2022, as the operating efficiency of new CCGT units has improved. The increased efficiency improved the competitiveness of newer CCGT units against other fuel sources, as well as older CCGT units, to generate electricity.

Two factors affect the utilization of a CCGT: the efficiency of the generator and the delivered cost of natural gas. More advanced H- and J-class natural gas turbine technology entered the market in the early 2010s, contributing to an increase in the efficiency of newer natural gas-fired power plants. Lower natural gas prices typically lead to higher capacity factors at natural gas-fired power plants because the electricity generated becomes cheaper than other electricity generation sources, such as coal. In 2012 and 2015, annual average capacity factors increased by more than seven percentage points in periods when the annual Henry Hub natural gas price declined.

Grid operators generally dispatch generators sequentially from lowest to highest cost. Because CCGT units built from 2010 to 2022 generally have the lowest operating costs, they are dispatched more frequently compared with older CCGT power plants. In 2022, the average capacity factor of CCGT units that began operations between 2010 and 2022 was 64% compared with 55% for those that began operations between 2000 and 2009 and 35% for units that began operations between 1990 and 1999.

About half of today’s CCGT capacity was built from 2000 to 2006. This sudden increase in CCGT plants was in response to power shortages that occurred in the late 1990s, along with the introduction of new and more efficient first generation F-class natural gas turbines to the market. Now, many of these CCGT plants are about 20 years old, which could lead to lower capacity factors as the units age.

Lower heat rates reflect the increased efficiency of newer CCGT power plants. Heat rate is the ratio of the amount of fuel required to generate a unit of electricity. CCGT power plants built between 2010 and 2022 demonstrate the lowest average heat rate among the entire fleet at 6,960 British thermal units per kilowatthour (Btu/kWh) in 2022, which is 7% lower than units built between 2000 and 2009. The average heat rate in 2022 for plants built between 2000 and 2009 was just under 7,479 Btu/kWh. This average heat rate is about 17% lower than the average heat rate of units built between 1990 and 1999.

Market Highlights:

(For the week ending Wednesday, September 27, 2023)

Prices

  • Henry Hub spot price: The Henry Hub spot price fell 6 cents from $2.77 per million British thermal units (MMBtu) last Wednesday to $2.71/MMBtu yesterday.
  • Henry Hub futures price: The October 2023 NYMEX contract expired yesterday at $2.764/MMBtu, up 3 cents from last Wednesday. The price of the November 2023 NYMEX contract, which represents the first month of sales of natural gas for winter heating season delivery, decreased to $2.899/MMBtu, down 2 cents from last Wednesday to yesterday. The price of the 12-month strip averaging November 2023 through October 2024 futures contracts declined 1 cent to $3.220/MMBtu.
  • Select regional spot prices: Natural gas spot price changes at major pricing hubs were mixed this report week (Wednesday, September 20, to Wednesday, September 27), decreasing at Henry Hub and major hubs west of the Rocky Mountains, but increasing at eastern hubs. Price changes ranged from a decrease of $1.15/MMBtu at SoCal Citygate to an increase of $0.27/MMBtu at Eastern Gas South near Pittsburgh, Pennsylvania.
    • Below-average temperatures in the Northeast led to increased demand for space heating while prices also increased this report week. At Algonquin Citygate, which serves Boston-area consumers, the price increased 15 cents from $1.36/MMBtu last Wednesday to $1.51/MMBtu yesterday. At the Transcontinental Pipeline Zone 6 trading point for New York City, the price rose 20 cents from $1.08/MMBtu last Wednesday to $1.28/MMBtu yesterday. In the Boston-Area, temperatures averaged 60°F this week, resulting in 34 heating degree days (HDD), 7 more HDDs than normal and 33 more than last week. Temperatures in the New York-Central Park Area averaged 61°F this week, 5°F below normal, resulting in 26 HDDs, 13 HDDs more than normal and 24 more than last week. Natural gas consumption in the residential and commercial sector in the Northeast rose 20% (0.6 billion cubic feet per day [Bcf/d]) this week, according to data from S&P Global Commodity Insights.
    • Prices on the West Coast decreased this report week, and prices in all major western markets fell below $3.00/MMBtu, except at PG&E Citygate in Northern California. The price at PG&E Citygate in Northern California fell 29 cents, down from $3.54/MMBtu last Wednesday to $3.25/MMBtu yesterday, and at SoCal Citygate in Southern California, the price decreased $1.15 from $4.13/MMBtu last Wednesday to $2.98/MMBtu yesterday. Temperatures in the Riverside Area, east of Los Angeles, averaged 72°F this week, 3°F below normal, resulting in 48 cooling degree days (CDD), or 20 CDDs below normal. On Wednesday, September 27, the Southern California Gas Company (SoCalGas) shut in the Aliso Canyon storage field for planned maintenance for approximately two weeks, reducing the ability to inject more natural gas into the caverns by 0.4 Bcf/d. Inventories at Aliso Canyon have been building since September 1, following the California Public Utility Commission’s decision on August 31 to increase working natural gas storage capacity at the facility. As of September 26, inventories at Aliso Canyon were about 48.2 billion cubic feet (Bcf), about 19% (7.7 Bcf) more than at the end of August.
    • The price at the Waha Hub in West Texas, which is located near Permian Basin production activities, increased 5 cents this report week from $1.76/MMBtu last Wednesday to $1.81/MMBtu yesterday. The Waha Hub traded 90 cents below the Henry Hub price yesterday, compared with last Wednesday when it traded $1.01 below the Henry Hub price. The price rose despite the start of planned maintenance yesterday on the Permian Highway Pipeline (PHP), which delivers natural gas from the Permian production region to the U.S. Gulf Coast. The maintenance will reduce available takeaway capacity on the PHP by 0.3 Bcf/d until Monday, October 2. The price at the Houston Ship Channel increased 5 cents from $2.41/MMBtu last Wednesday to $2.46/MMBtu yesterday. Natural gas consumption in Texas increased 4% (0.5 Bcf/d) week over week, led by a 9% (0.6 Bcf/d) increase in electric power sector consumption, according to data from S&P Global Commodity Insights. Temperatures in the Houston Area averaged 85°F this week, which resulted in 142 CDDs, 25 more CDDs than last week and 47 more than normal.

    Daily spot prices by region are available on the EIA website.

  • International futures prices: International natural gas futures prices increased this report week. According to Bloomberg Finance, L.P., weekly average front-month futures prices for liquefied natural gas (LNG) cargoes in East Asia increased 80 cents to a weekly average of $14.63/MMBtu. Natural gas futures for delivery at the Title Transfer Facility (TTF) in the Netherlands increased $1.32 to a weekly average of $12.61/MMBtu, the highest weekly average since late April. In the same week last year (week ending September 28, 2022), the prices were $39.77/MMBtu in East Asia and $53.45/MMBtu at TTF.
  • Natural gas plant liquids (NGPL) prices: The natural gas plant liquids composite price at Mont Belvieu, Texas, fell by 47 cents/MMBtu, averaging $7.41/MMBtu for the week ending September 27. Weekly average ethane prices fell 11%, while weekly average natural gas prices at the Houston Ship Channel fell 2% week over week, narrowing the ethane premium to natural gas by 21%. Ethylene spot prices remained relatively unchanged, widening the ethylene premium to ethane by 11%. The average weekly propane price fell 6%, while the Brent crude oil price fell 1%. The propane discount relative to crude oil rose 4%. The normal butane price fell 5%, and the isobutane price and natural gasoline price both fell 3%.
Top

Supply and Demand

  • Supply: According to data from S&P Global Commodity Insights, the average total supply of natural gas rose by 0.1% (0.1 Bcf/d) compared with the previous report week. Dry natural gas production remained unchanged at an average 101.2 Bcf/d, and average net imports from Canada increased by 2.0% (0.1 Bcf/d) from last week.
  • Demand: Total U.S. consumption of natural gas rose by 1.3% (0.9 Bcf/d) compared with the previous report week, according to data from S&P Global Commodity Insights. Natural gas consumed for power generation rose by 1.2% (0.4 Bcf/d) week over week. Industrial sector consumption decreased by 1.0% (0.2 Bcf/d), and residential and commercial sector consumption increased by 7.4% (0.6 Bcf/d). Natural gas exports to Mexico increased by 1.5% (0.1 Bcf/d). Natural gas deliveries to U.S. LNG export facilities (LNG pipeline receipts) averaged 11.8 Bcf/d, or 1.2 Bcf/d lower than last week.
Top

Liquefied Natural Gas (LNG)

  • Pipeline receipts: Average natural gas deliveries to U.S. LNG export terminals decreased by 9.1% (1.2 Bcf/d) week over week, averaging 11.8 Bcf/d, according to data from S&P Global Commodity Insights. Natural gas deliveries to terminals in South Louisiana decreased by 3.2% (0.3 Bcf/d) to 7.8 Bcf/d, while deliveries to terminals in South Texas decreased by 7.4% (0.3 Bcf/d) to 3.7 Bcf/d. Natural gas deliveries to terminals outside the Gulf Coast decreased 67.6% (0.6 Bcf/d) to 0.3 Bcf/d. Natural gas deliveries to the Cove Point LNG terminal in Maryland fell to zero this week because the facility is undergoing annual maintenance.
  • Vessels departing U.S. ports: Twenty-one LNG vessels (eight from Sabine Pass; four from Cameron; and three each from Calcasieu Pass, Corpus Christi, and Freeport) with a combined LNG-carrying capacity of 79 Bcf departed the United States between September 21 and September 27, according to shipping data provided by Bloomberg Finance, L.P.
Top

Rig Count

  • According to Baker Hughes, for the week ending Tuesday, September 19, the natural gas rig count decreased by 3 from a week ago to 118 rigs, as the Haynesville dropped 2 rigs and 1 rig was dropped among unidentified producing regions. The number of oil-directed rigs decreased by 8 from a week ago to 507 rigs. The Ardmore Woodford and Granite Wash each added one rig, the Cana Woodford dropped one rig, the Permian dropped five rigs, and four rigs were dropped among unidentified producing regions. The total rig count, which includes 5 miscellaneous rigs, stands at 630 rigs, 134 fewer than last year at this time.
Top

Storage

  • Net injections into storage totaled 90 Bcf for the week ending September 22, compared with the five-year (2018–2022) average net injections of 84 Bcf and last year's net injections of 103 Bcf during the same week. Working natural gas stocks totaled 3,359 Bcf, which is 189 Bcf (6%) more than the five-year average and 397 Bcf (13%) more than last year at this time.
  • According to The Desk survey of natural gas analysts, estimates of the weekly net change to working natural gas stocks ranged from net injections of 84 Bcf to 102 Bcf, with a median estimate of 90 Bcf.
  • The average rate of injections into storage is 7% lower than the five-year average so far in the refill season (April through October). If the rate of injections into storage matched the five-year average of 10.9 Bcf/d for the remainder of the refill season, the total inventory would be 3,784 Bcf on October 31, which is 189 Bcf higher than the five-year average of 3,595 Bcf for that time of year.
More storage data and analysis can be found on the Natural Gas Storage Dashboard and the Weekly Natural Gas Storage Report.

Top

See also:

Top
Annualized capacity factor of U.S. combined-cycle natural gas turbine power plants (2008–2022)Data source: U.S. Energy Information Administration, Form EIA-860M, Monthly Electric Power Industry Report
Permian region monthly average natural gas production per well (2017–2023)Data source: U.S. Energy Information Administration, Form EIA-860M, Monthly Electric Power Industry Report
2022 average heat rate of U.S. combined cycle natural gas turbine power plants by operation start dateData source: U.S. Energy Information Administration, Form EIA-860M, Monthly Electric Power Industry Report

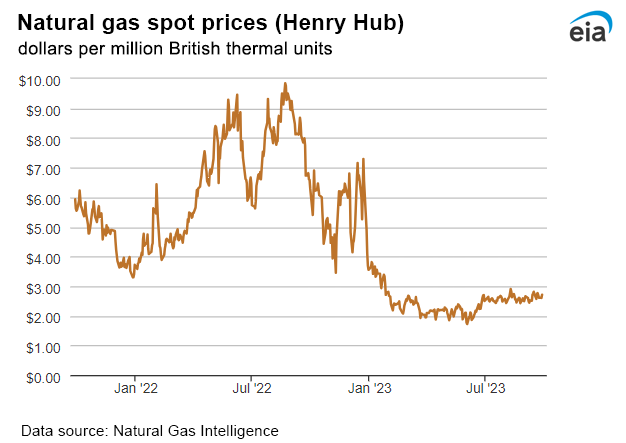

Natural gas spot prices
Spot Prices ($/MMBtu)
Thu,
21-Sep
Fri,
22-Sep
Mon,
25-Sep
Tue,
26-Sep
Wed,
27-Sep
Henry Hub
2.70
2.61
2.61
2.60
2.71
New York
0.94
0.79
1.33
1.34
1.28
Chicago
2.19
2.11
2.18
2.22
2.27
Cal. Comp. Avg.*
2.57
2.51
2.68
2.78
2.59
Futures ($/MMBtu)
October contract
2.610
2.637
2.639
2.656
2.764
November contract
2.840
2.879
2.906
2.845
2.899
*Avg. of NGI's reported prices for: Malin, PG&E Citygate, and Southern California Border Avg.
Data source: NGI's Daily Gas Price Index

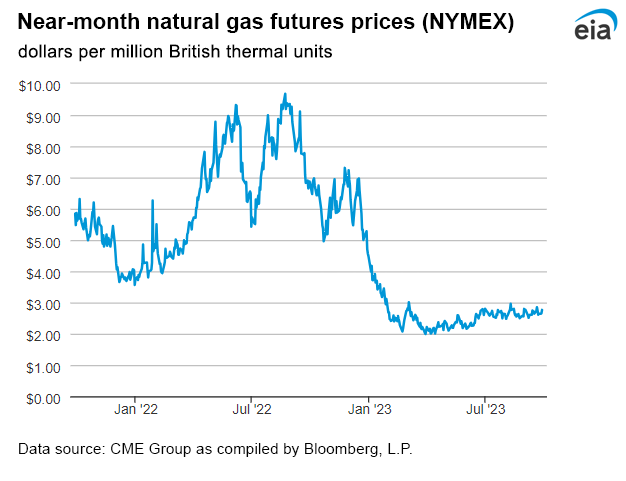

Natural gas futures prices

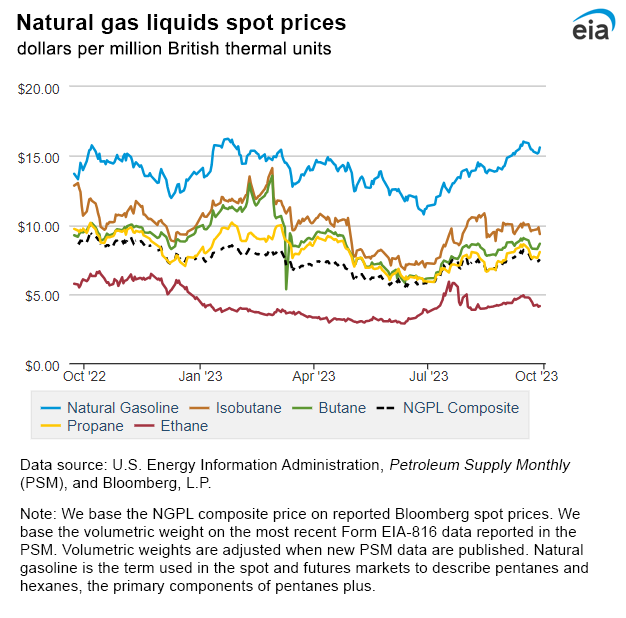

Natural gas liquids spot prices


U.S. natural gas supply - Gas Week: (9/21/23 - 9/27/23)
Average daily values (billion cubic feet)
this week
last week
last year
Marketed production
114.3
114.2
112.9
Dry production
101.2
101.2
99.6
Net Canada imports
4.8
4.7
6.0
LNG pipeline deliveries
0.1
0.1
0.1
Total supply
106.1
105.9
105.7

Data source: S&P Global Commodity Insights
Note: This table reflects any data revisions that may have occurred since the previous week's posting. Liquefied natural gas (LNG) pipeline deliveries represent natural gas sendout from LNG import terminals.

U.S. natural gas consumption - Gas Week: (9/21/23 - 9/27/23)
Average daily values (billion cubic feet)
this week
last week
last year
U.S. consumption
68.4
67.5
66.9
    Power
37.3
36.9
35.9
    Industrial
21.7
22.0
21.3
    Residential/commercial
9.4
8.7
9.7
Mexico exports
6.5
6.4
5.8
Pipeline fuel use/losses
6.8
6.8
6.6
LNG pipeline receipts
11.8
13.0
11.5
Total demand
93.6
93.8
90.9

Data source: S&P Global Commodity Insights
Note: This table reflects any data revisions that may have occurred since the previous week's posting. Liquefied natural gas (LNG) pipeline receipts represent pipeline deliveries to LNG export terminals.

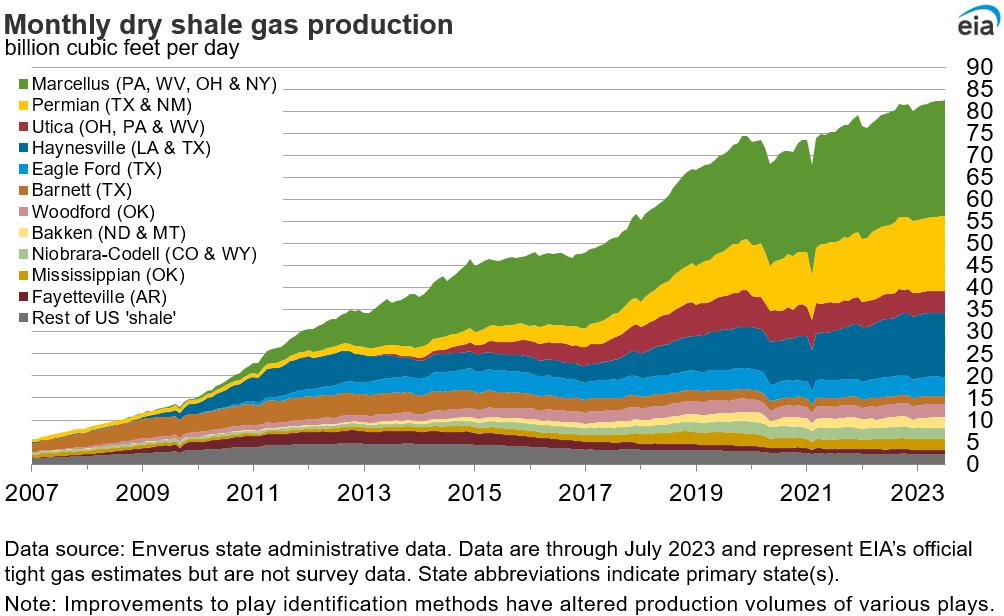

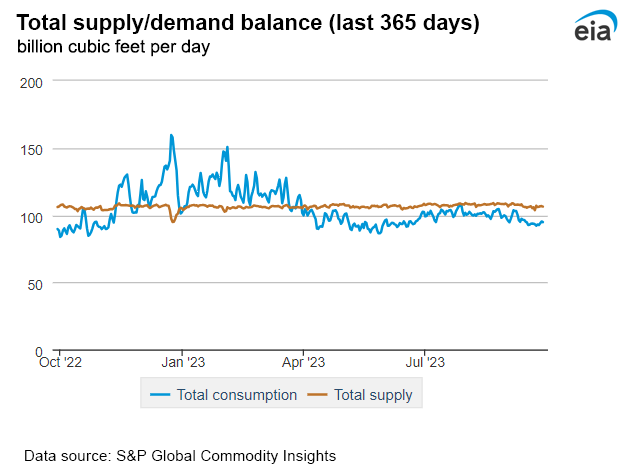

Natural gas supply


Weekly natural gas rig count and average Henry Hub
Rigs
Tue, September 19, 2023
Change from

last week
last year
Oil rigs
507
-1.6%
-15.8%
Natural gas rigs
118
-2.5%
-26.3%
Note: Excludes any miscellaneous rigs

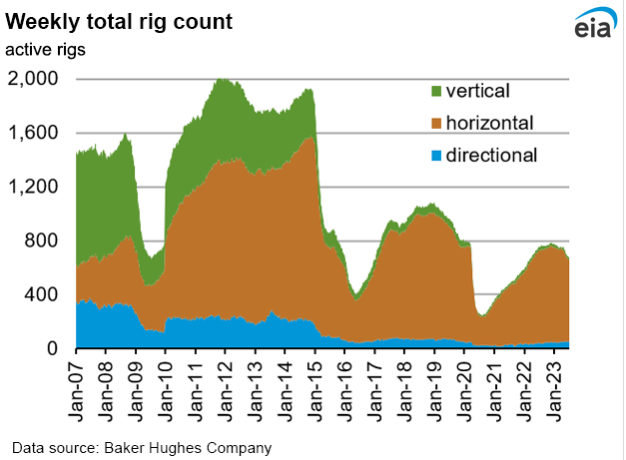

Rig numbers by type
Tue, September 19, 2023
Change from

last week
last year
Vertical
16
-5.9%
-36.0%
Horizontal
558
-1.6%
-19.5%
Directional
56
-1.8%
21.7%
Data source: Baker Hughes Company


Working gas in underground storage
Stocks
billion cubic feet (Bcf)
Region
2023-09-22
2023-09-15
change
East
821
793
28
Midwest
962
931
31
Mountain
 234
 228
6
Pacific
271
263
8
South Central
1,071
1,053
18
Total
3,359
3,269
90
Data source: U.S. Energy Information Administration Form EIA-912, Weekly Underground Natural Gas Storage Report
Note: Totals may not equal sum of components because of independent rounding.
Working gas in underground storage
Historical comparisons
Year ago
(9/22/22)
5-year average
(2018-2022)
Region
Stocks (Bcf)
% change
Stocks (Bcf)
% change
East
717
14.5
778
5.5
Midwest
874
10.1
914
5.3
Mountain
175
33.7
194
20.6
Pacific
242
12.0
269
0.7
South Central
955
12.1
1,015
5.5
Total
2,962
13.4
3,170
6.0
Data source: U.S. Energy Information Administration Form EIA-912, Weekly Underground Natural Gas Storage Report
Note: Totals may not equal sum of components because of independent rounding.


Temperature – heating & cooling degree days (week ending Sep 21)

HDDs
CDDs
Region
Current total
Deviation from normal
Deviation from last year
Current total
Deviation from normal
Deviation from last year
New England
25
-11
-2
0
-2
-3
Middle Atlantic
23
-4
14
0
-10
-17
E N Central
31
1
26
3
-8
-36
W N Central
19
-15
14
20
4
-37
South Atlantic
6
-2
6
52
-5
-12
E S Central
6
-2
5
42
-3
-24
W S Central
0
-2
0
90
14
-16
Mountain
26
-13
9
32
-4
-3
Pacific
8
-4
0
10
-19
8
United States
18
-4
11
28
-5
-15
Data source: National Oceanic and Atmospheric Administration
Note: HDDs=heating degree days; CDDs=cooling degree days

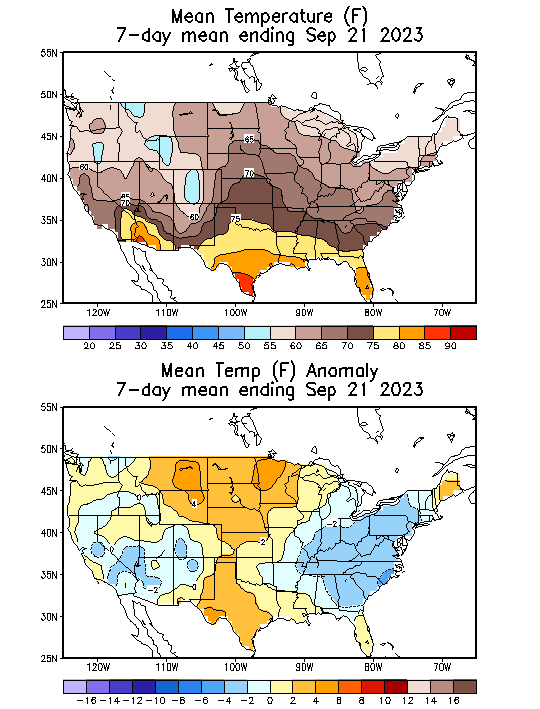

   Average temperature (°F)


   7-day mean ending Sep 21, 2023

Mean Temperature (F) 7-Day Mean ending Sep 21, 2023

        Data source: National Oceanic and Atmospheric Administration

  Deviation between average and normal temperature (°F)


   7-day mean ending Sep 21, 2023

Mean Temperature Anomaly (F) 7-Day Mean ending Sep 21, 2023

        Data source: National Oceanic and Atmospheric Administration
