Today in Energy

March 1, 2017

Canada is the United States’ largest partner for energy trade

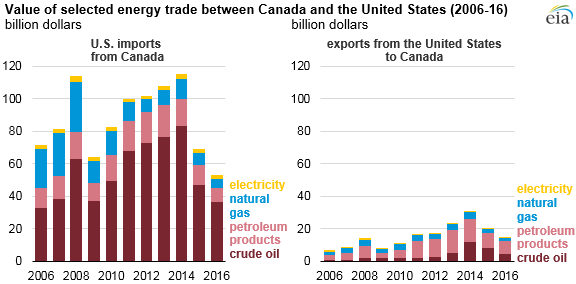

graph of value of selected energy trade between Canada and the United States, as explained in the article text
Source: U.S. Energy Information Administration, based on U.S. Census Bureau

Canada is the largest energy trading partner of the United States. Based on the latest annual data from the U.S. Census Bureau, energy accounted for about 5% of the value of all U.S. exports to Canada and more than 19% of the value of all U.S. imports from Canada in 2016.

While the value of bilateral energy trade with Canada has varied over past decade, driven primarily by changes in prices of oil and natural gas, the overall structure of bilateral energy trade flows has changed relatively little, and U.S. energy imports from Canada has exceeded U.S. energy exports to Canada by a large margin. In 2015 and 2016, the value of U.S. energy imports from Canada and the value of U.S. energy exports to Canada both fell, reflecting declining prices of key commodities such as crude oil, petroleum products, and natural gas. For 2016, the value of U.S. energy imports from Canada was $53 billion, while the value of U.S. energy exports to Canada was $14 billion.

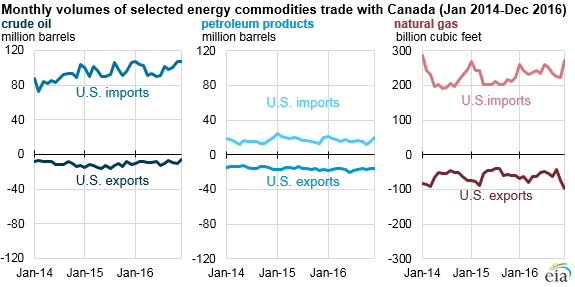

graph of monthly volumes of selected energy commodities trade with Canada, as explained in the article text
Source: U.S. Energy Information Administration, Petroleum Supply Monthly and Natural Gas Monthly

Crude oil makes up most U.S. energy imports from Canada, averaging 3.3 million barrels per day (b/d) in 2016. Canada is by far the largest source of U.S. crude oil imports, providing 41% of total U.S. crude oil imports in 2016. Sales of Canadian crude oil to the United States reached more than $83 billion in 2014. As oil prices fell in 2015 and 2016, the value of U.S. crude oil imports from Canada fell from $47 billion in 2015 to $36 billion in 2016, despite increasing in volume. Canada’s crude oil exports to the United States, which are produced in Alberta and are shipped primarily to the Midwest and Gulf Coast regions of the United States, consist mainly of heavy grades.

Until 2013, virtually all U.S. crude oil exports went to Canada. However, as the United States has exported more crude oil to other countries, Canada has made up a smaller share of U.S. crude oil exports. In 2016, an average of 301,000 b/d of U.S. crude oil was exported to Canada and 219,000 b/d to all other countries. U.S. crude oil exports to Canada are typically light, sweet grades that are shipped to the eastern part of the country.

Bilateral petroleum products trade with Canada is relatively balanced in both volumetric and value terms. Canada was the destination for 564,000 b/d of petroleum products in 2016, or 12% of all petroleum products exported from the United States. These exports were valued at more than $8.2 billion. However, the mix of petroleum product flows between the United States and Canada varies by product and region. For example, the United States is a net importer of gasoline from Canada, with significant volumes flowing from refineries in Eastern Canada to serve markets in the Northeast United States.

Conversely, very little of the petroleum products exported from the United States to Canada are finished transportation fuels. Pentanes plus, liquefied petroleum gases, and other oils make up the majority of U.S. product exports to Canada. Some of these products are used as a diluent to enable pipeline movement of heavy crude oils produced in Canada. On balance, the United States is a net exporter in its bilateral petroleum product trade with Canada, and U.S. petroleum product exports to Canada (and other destinations) have been gradually increasing over the past decade.

Bilateral natural gas trade between Canada and the United States is dominated by pipeline shipments. Natural gas imports from Canada averaged 8.0 billion cubic feet per day (Bcf/d) in 2016, or 97% of all U.S. natural gas imports. Total natural gas imports from Canada were valued at more than $5.9 billion in 2016. Most of Canada’s natural gas exports to the United States originate in Western Canada and are shipped to U.S. markets in the West, Midwest, and Northeast. Increases in natural gas production in the Marcellus and Utica plays have made the United States less dependent on Western Canadian natural gas imports in northeastern markets.

U.S. natural gas exports to Canada, which averaged 1.9 Bcf/d in 2015 and 2.1 Bcf/d in 2016, mainly go from Michigan and New York into eastern provinces. Increases in pipeline capacity to carry natural gas out of the Marcellus and Utica shale formations may enable increased flows of U.S. gas into Canada over the next several years.

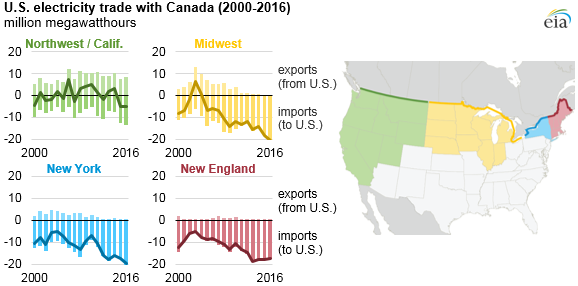

graph of U.S. electricity trade with Canada, as explained in the article text
Source: U.S. Energy Information Administration, based on National Energy Board of Canada
Note: A small amount of electricity is traded by states outside the regions shown.

Electricity makes up a small but important share of bilateral trade. In 2015 and 2016, the value of U.S. imports of electricity from Canada averaged $2.2 billion, down slightly from an average of $2.4 billion from 2006 to 2014. In 2016, the United States imported 73 million megawatthours of electricity from Canada, while exporting 9.3 million megawatthours, based on data from Canada’s National Energy Board. U.S. electricity trade with Canada is increasing, and although the amount of electricity imported over the Canadian border is a small part of the overall U.S. power supply, the transmission connections linking Canada and the United States are an important component of electricity markets on both sides of the border, where they also support electric system reliability.

Principal contributor: Natalie Kempkey
