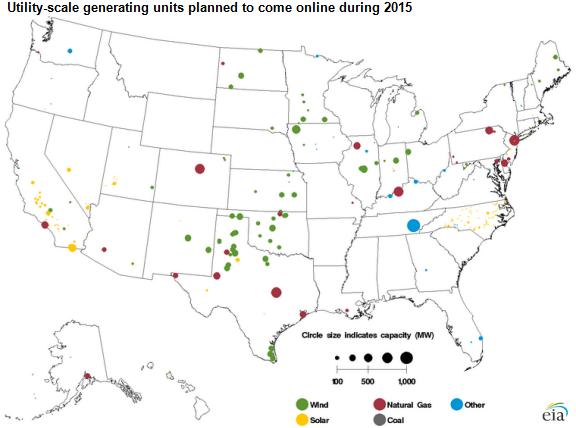

In 2015, electric generating companies expect to add more than 20 gigawatts (GW) of utility-scale generating capacity to the power grid. The additions are dominated by wind (9.8 GW), natural gas (6.3 GW), and solar (2.2 GW), which combine to make up 91% of total additions. Because different types of generating capacity have very different utilization rates, with nuclear plants and natural gas combined-cycle generators having utilization factors three to five times those of wind and solar generators, capacity measures alone do not directly show how much generation is actually provided by new capacity of each type. Nearly 16 GW of generating capacity is expected to retire in 2015, 81% of which (12.9 GW) is coal-fired generation.
The addition of more natural gas, solar, and wind generating capacity follows the pattern of the past several years. Although most states have a planned addition of some type this year, a few trends have emerged:

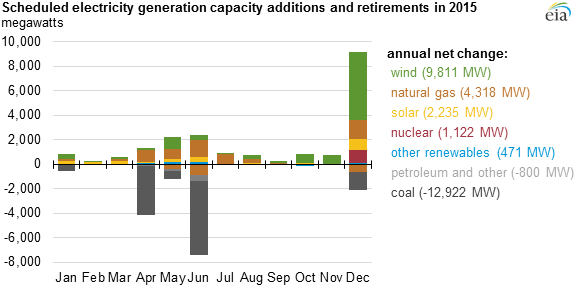

These values reflect reported additions and retirements, not model projections. In many years, expected capacity additions in December were much higher than in any other month. The impending expiration of certain tax credits on December 31 often encourages a rush of activity to start or complete projects by the end of the year, depending on how the credit is awarded. Large reported values in December are also attributable to how respondents complete the survey; many projects expected to begin operation sometime in 2015 are conservatively estimated for a December completion date.

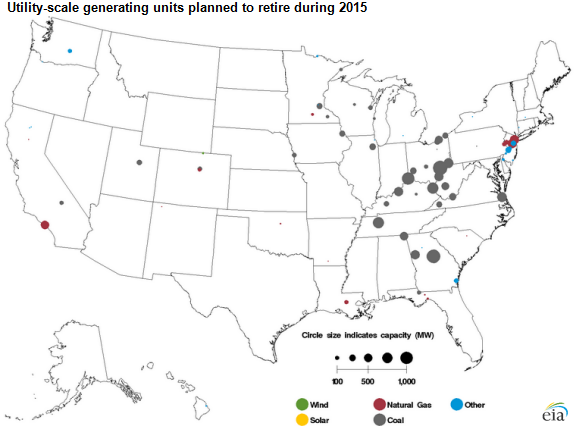

Generator retirements are heavily composed of coal-fired generation, with nearly 13 GW expected to be retired in 2015. The total of scheduled coal-fired generating capacity retirements is split between 10.2 GW of bituminous coal and 2.8 GW of subbituminous coal. Most of this retiring coal capacity is found in the Appalachian region: slightly more than 8 GW combined in Ohio, West Virginia, Kentucky, Virginia, and Indiana.
The coal-fired units planned to be retired are smaller and operate at a lower capacity factor than average coal-fired units in the United States. The to-be-retired units have an average summer nameplate capacity of 158 MW, considerably smaller than the 261 MW average for other coal-fired units. Based on 2013 data, the retiring units have a weighted-average capacity factor of 24%, which is much lower than the average capacity factor of 60% for all coal-fired generators over the same time frame.
The large number of coal-fired generator retirements is primarily because of the implementation of the Environmental Protection Agency's Mercury and Air Toxics Standards (MATS) this year, although some units have been granted extensions to operate through April 2016. MATS requires large coal- and oil-fired electric generators to meet stricter emissions standards by incorporating emissions control technologies in existing generating facilities. Some power plant operators have decided that retrofitting units to meet the new standards will be cost-prohibitive and are choosing to retire units instead.
Principal contributor: Tim Shear
